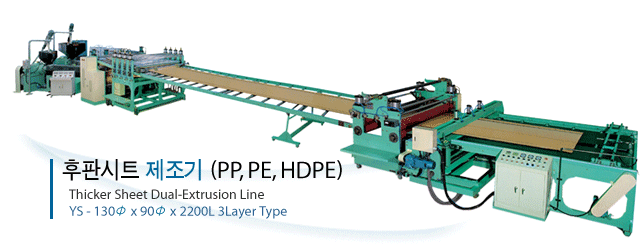

PP원료로 30mmt 두께의 SHEET 생산가능
PP, PE, PS 및 ABS 후판 (6~30mmt) Sheet를
생산할 수 있도록 필요한 모든 능력을 보유하고 완벽한 기능을 발휘하도록
제작 되었으며, 확실한 안전성은 오랜 연속 작동으로 증명 되었습니다. |
|
 |
|
| |
 |
 |
 |
 |
| T-Die |
Extruder |
Polishing Roll |
|
| |
 |
| Item |
YS-100TSM |
YS-110TSM |
YS-(130x90)x2ETSM |
| General |
Sheet thickness |
6
~ 30 mmt |
| Width |
700 ~ 1200
mm |
900 ~ 1400
mm |
1000 ~ 2000
mm |
| Extrusion out
put |
90 ~ 120 kg/hr |
100 ~ 180 kg/hr |
300 kg/hr |
| Extruder |
Screw |
Φ100 x LD =
30 |
Φ120 x LD =
32 |
(130x90) x
LD = 32 |
| Material |
SCM
4 |
| Cylinder |
SACM
645 |
| Driving motor |
DC 75 kw |
DC 90 kw |
DV 132 kw |
Screen
changer |
Type |
Oil
hydrauilc |
| Operation |
Semi-auto
type |
| T-die |
Die width |
1000 ~ 1400
mm |
1000 ~ 1400
mm |
1200 ~ 2200
mm |
| Material |
SCM
4 |
| Heater |
Cartirige
heater |
| Control
panel |
Type |
Cabinet
board |
| Heating controller |
11 zone |
11 zone |
18 zone |
Polishing
roll unit |
Type |
3
roll vertical |
| Roll |
Φ290 x 140
mm |
Φ310 x 1400
mm |
Φ400 x 2200
mm |
| Driving motor |
DC 1.5 kw |
DC 2.2 kw |
DC 2.2 kw |
| Roll adjust |
By
air cyinder |
| Take
up unit |
Roll |
Φ160 x 1400
mm |
Φ160 x 1600
mm |
Φ180 x 2200
mm |
| Driving motor |
DC 2.2 kw |
DC 3.7 kw |
DC 3.7 kw |
| Cutting
unit |
Trimming |
(A)
Straight Knife aaa(B)
Ring knife aaa(C)
Rotary saw |
| Length cutting |
(A)
Air press aaa(B)
Motor press aaa(c)Tip
saw cutt |
| Winder |
Type |
Disk
slip drive |
| Winding diameter |
Max,
450 mm Φ |
| Driving motor |
0.4 kw x 2
pcs |
0.4 kw x 2
pcs |
0.75 kw x 2
pcs |
|
| |
|
|
| |
|
|
